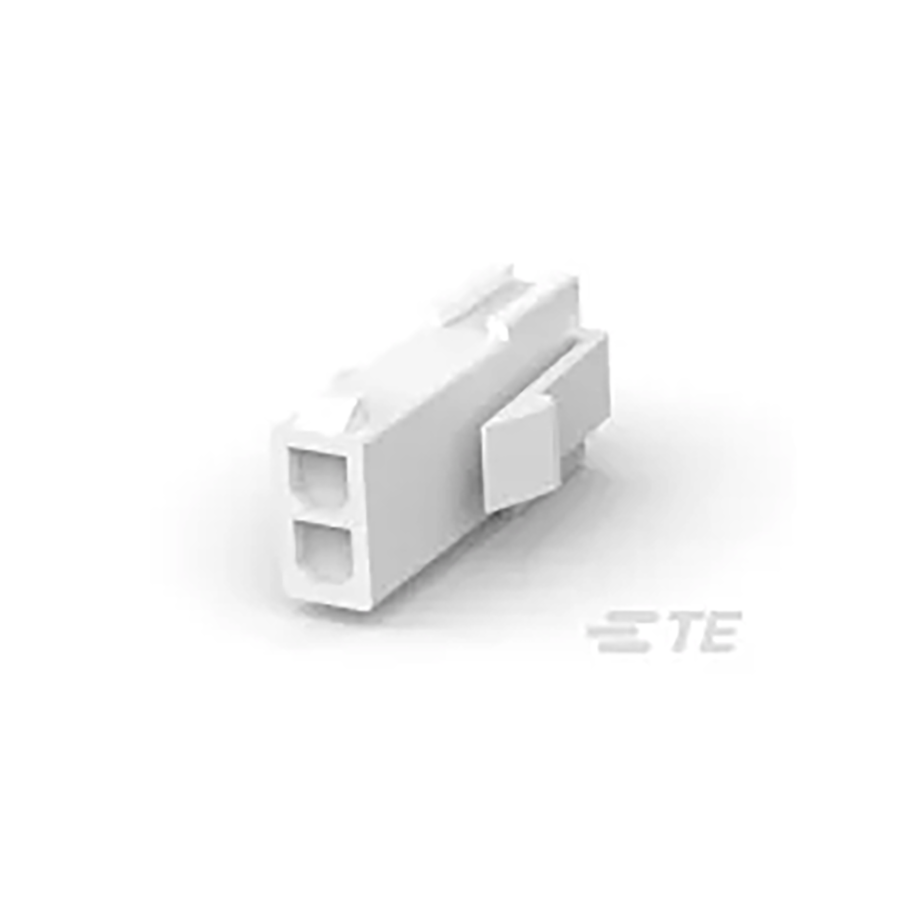

794896-1
Manufacturer:
TE Connectivity
Mfr.Part #:
794896-1
Datasheet:
Description:
Headers and Wire Housings Panel Male or Female, Receptacle, Socket Number of Positions:2 Pitch:4.1148 mm
| Parameter | Value |
|---|---|
| Length | 24.9682 mm |
| Width | 11.9888 mm |
| Termination | Crimp |
| Max Operating Temperature | 194 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 2 |
| Height | 9.8044 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 24.97 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.14 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Ratings | IP56 |
| Pitch | 4.1148 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Male or Female, Receptacle, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 4.1402 mm |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Natural |
| Panel Thickness | 1.9812 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | Yes |
| Contact Retention | Without |
Stock: 754
Distributors
pcbx
pcbxUnit Price$0.17750
Ext.Price$0.17750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17750 | $0.17750 |
| 10 | $0.15918 | $1.59180 |
| 50 | $0.14275 | $7.13750 |
| 100 | $0.12553 | $12.55300 |
| 500 | $0.11039 | $55.19500 |
| 1000 | $0.10186 | $101.86000 |
| 3000 | $0.09398 | $281.94000 |
